XUNKUNE DC24V DIY Reciprocating Cycle Linear Actuator, Adjustable Telescopic Motor with Speed Controller Regulation Adapte,5-25kg Thrust (2cm-8cm/210rpm)
4.9 (147 items)
Limited Time Sale$26.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211204585 | Release Date | 2026/04/04 | List Price | $17.60 | Model Number | 211204585 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

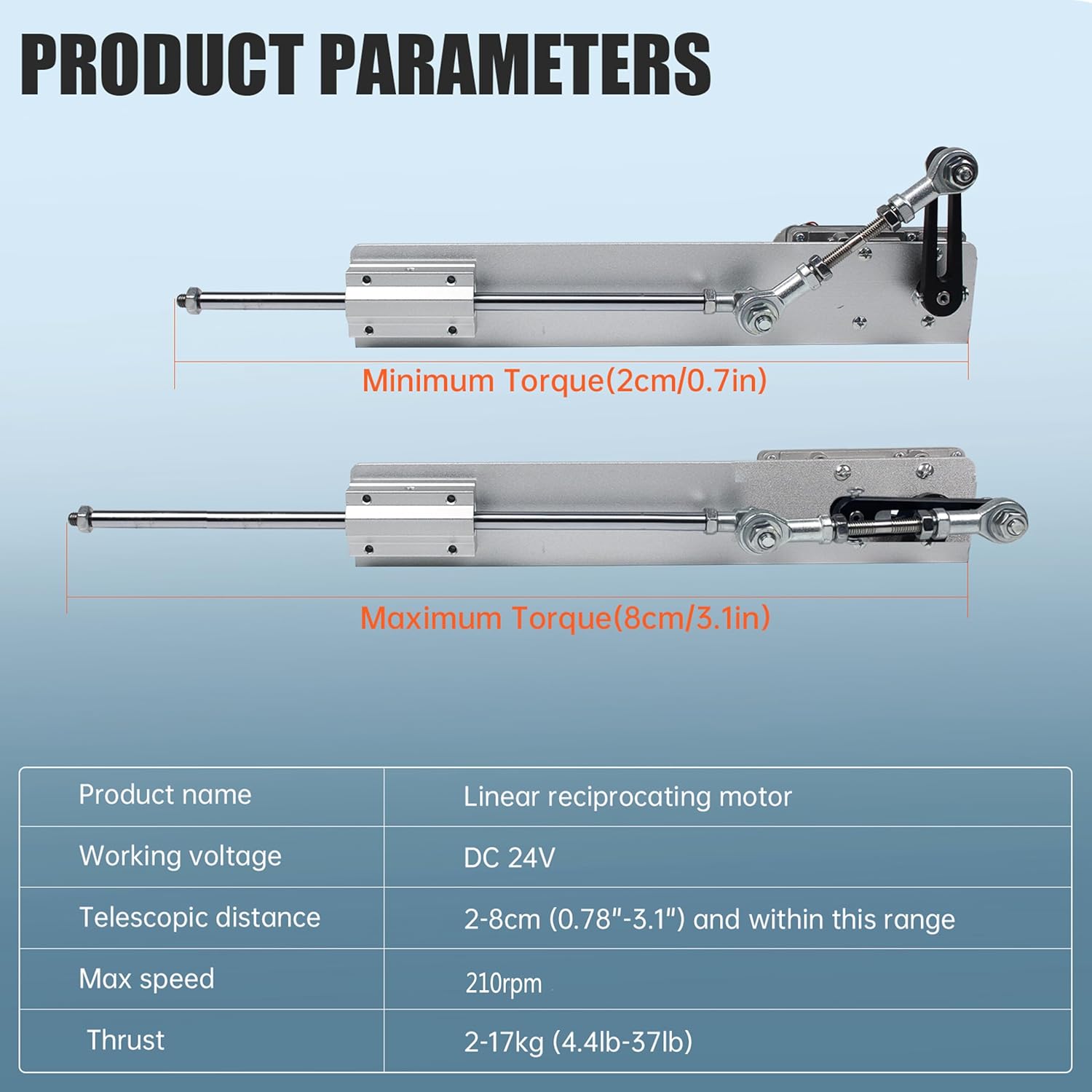

- 【Parameter】Name:DIY Reciprocating Linear Actuator; Rated Voltage: DC 24V;Input voltage: AC100-240V,50Hz/60Hz; Pushing Force: 3lbs-40lbs
- 【Pushing Force】When the rocker arm is closest to the shaft and the voltage is 24V, the maximum thrust can reach 40lbs. As the voltage decreases, the thrust will also decrease accordingly
- 【AC/DC power supply】Linear motion speed can be achieved by adjusting the voltage of the motor. There is a voltage adjustable button on the adapter. From 110-240V to 1-24V.
- 【Gear motor】 The gear motor adopts high-quality pure copper wire motor and integrated heat treated gearbox, with high power, low heat generation, multi-stage reduction, metal gears, high strength, and long service life. Voltage: 24VDC, rated current 0.6A, maximum torque 25kg/cm, shaft diameter 8mm, hole spacing 50x50mm, weight 0.5kg (1.1lb), length and width 60x102mm (2.36 "x4")

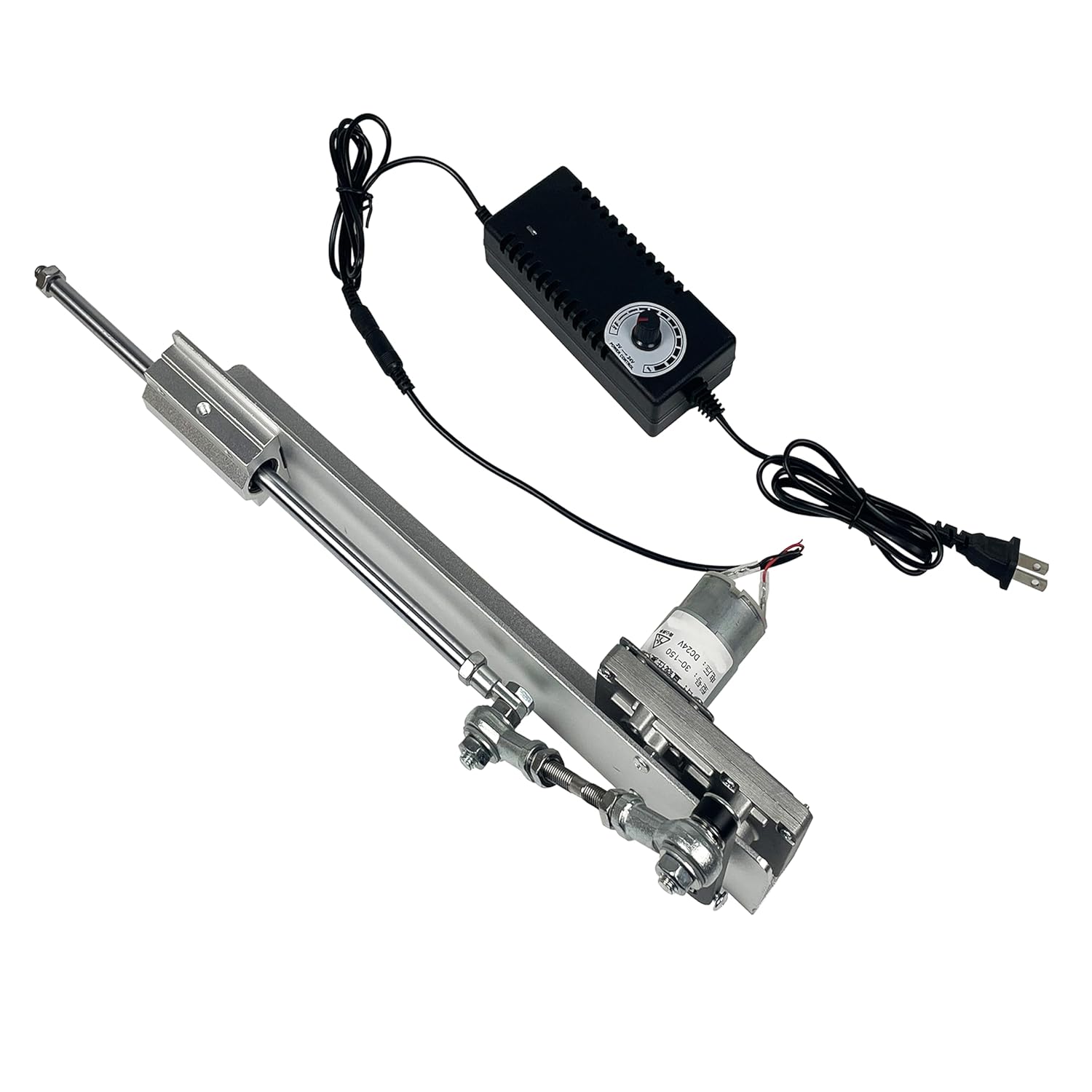

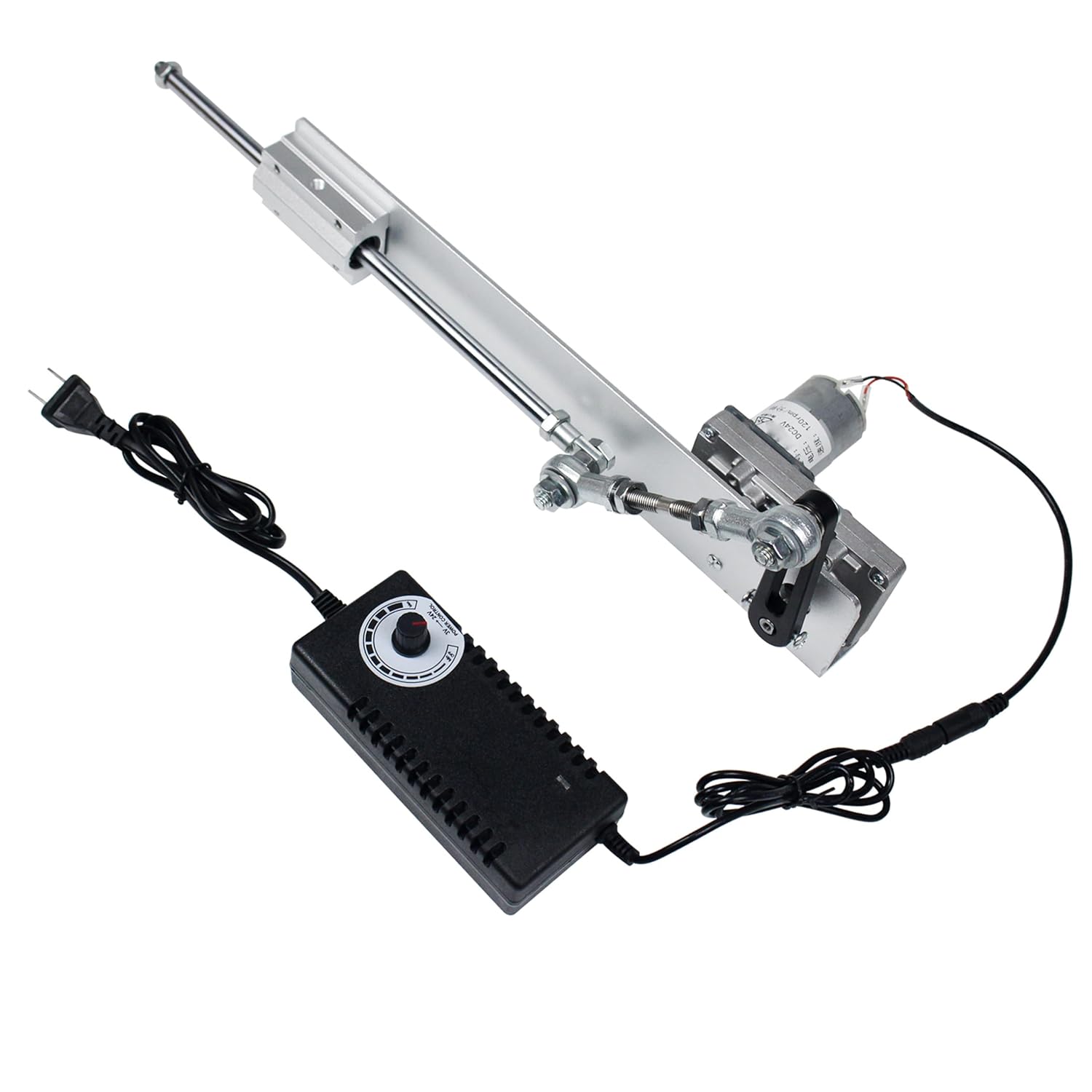

- 【Package Include】: 1PC Reciprocating Gear Motor +1PC Speed Control Regulator+1pc Cables.
| Item Weight | 3.08 pounds |
|---|---|
| Manufacturer | XUNKUNE |
| Product Dimensions | 11.42 x 3.5 x 5.87 inches |
Linear Motion Actuators
