LCD 2-Axis Digital Readout for Lathe (Complete DRO kit!)

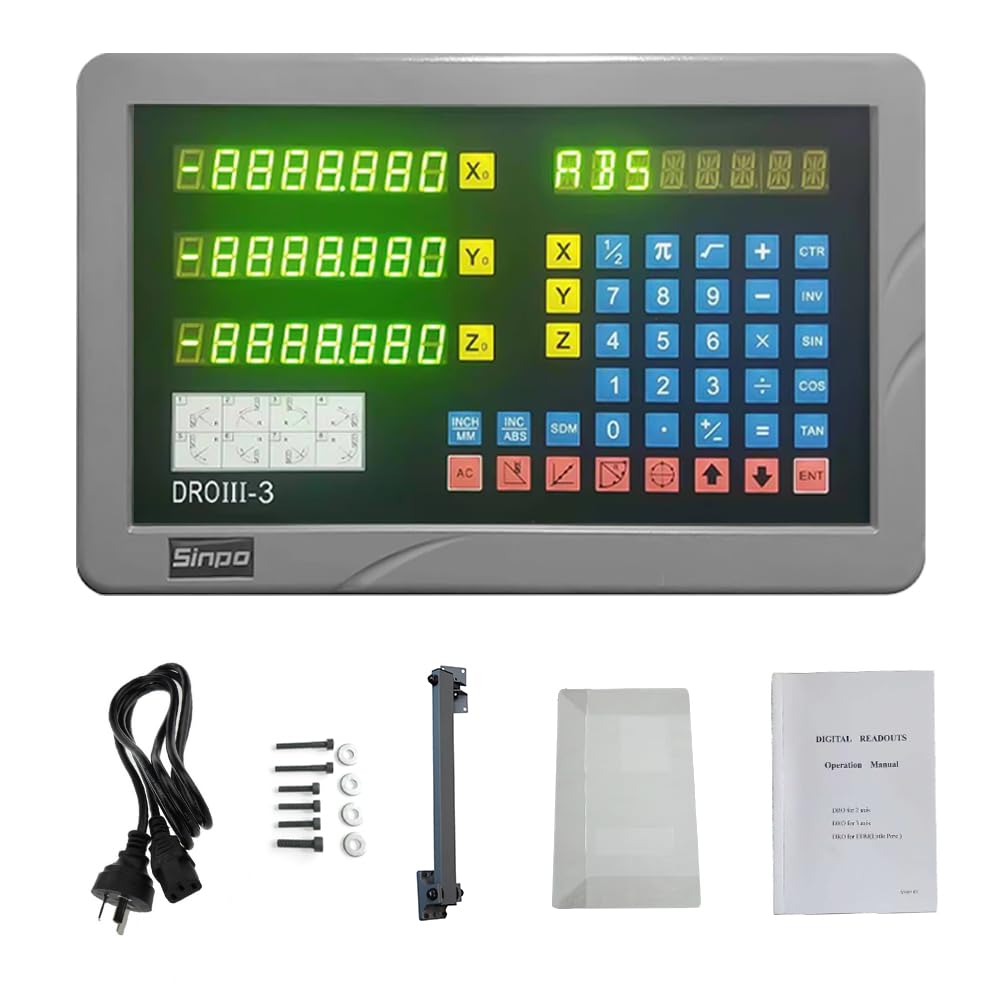

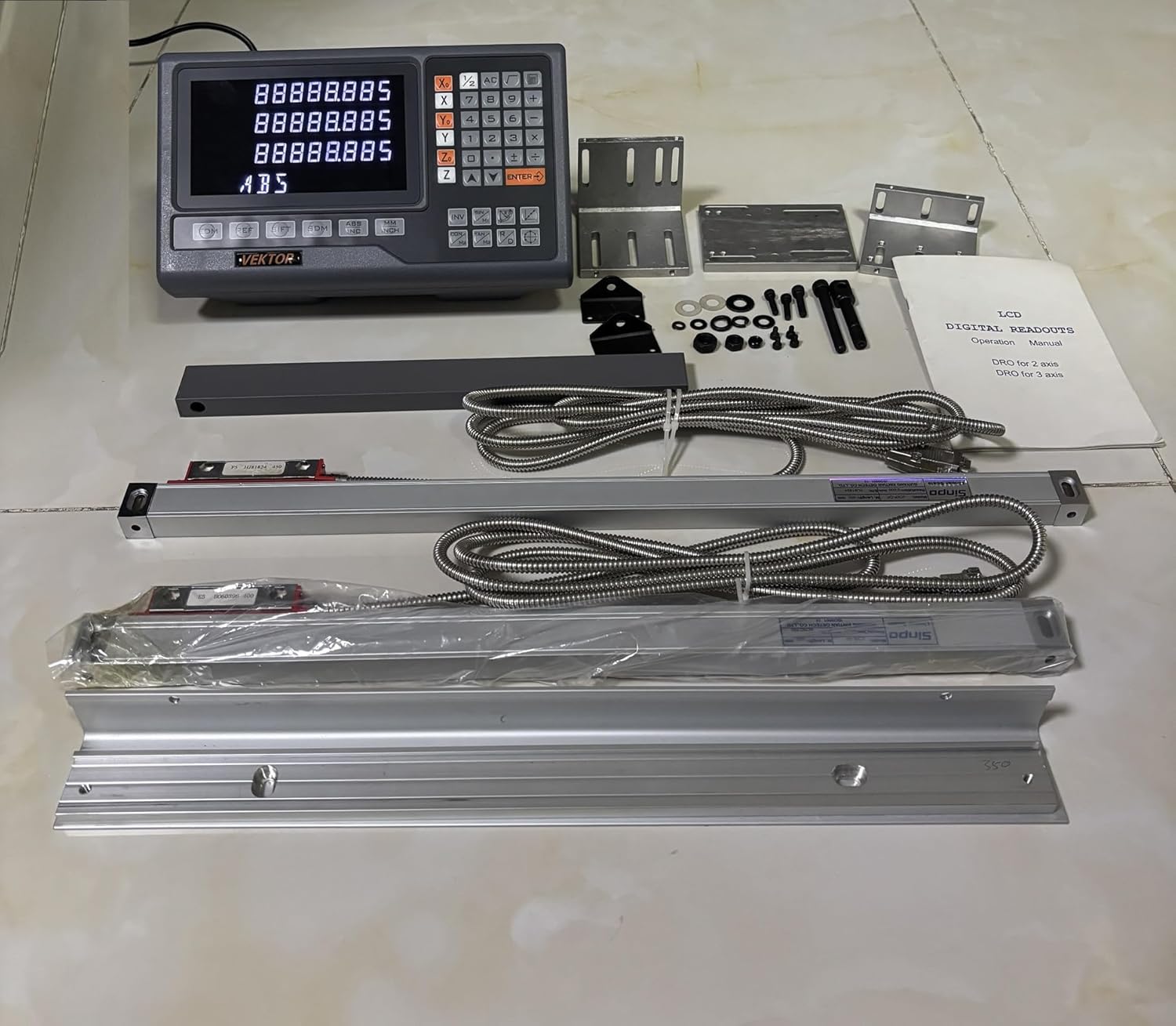

Product details Readout counter trigonometric function LCD display Input voltage 80-260V, 50HZ-60HZ (it can be plugged into 110 V or 220 V power supply directly) Zero Reset Inch/mm switch ABS/INC coordinate switch 200 Groups Coordinate Display Non-Volatile Memory (data retained in event of power loss) “1/2” function key Linear error compensation Sleep Switch 200 Points Auxiliary Zero Automatic Recognition and Storage of Scale Zero Reference Point Scale covers and backing plates Covers will be provided for all the scales in the kit The models/shapes of covers are determined by the position of installation on the machine. Cover for Z axis scale is different from those on X and Y axis. X axis scale can be directly mounted onto the rear side of the table which usually has a smooth surface. Brackets and screws for fitting reading heads Brackets in the photo are provided for illustration only. Different machines and installation on different axes may need different types of brackets. Occasionally, brackets may have to be customized in your own workshop. Therefore, our brackets can only be taken as "generic". X axis scales can be mounted onto the rear side of the table directly. The reading head and scale will be on the same level. Usually, no backing plate and brackets are needed to adjust the height of the reading head. One package of screws and washers will be supplied for each scale. What's in the box one 2-axis readout counter with power cord lathe-type swing arm clear plastic dust cover two linear scales of your choice with scale covers back plate for Z axis scale generic brackets for fitting reading heads on Y/Z axis two package of screws and washers for scale

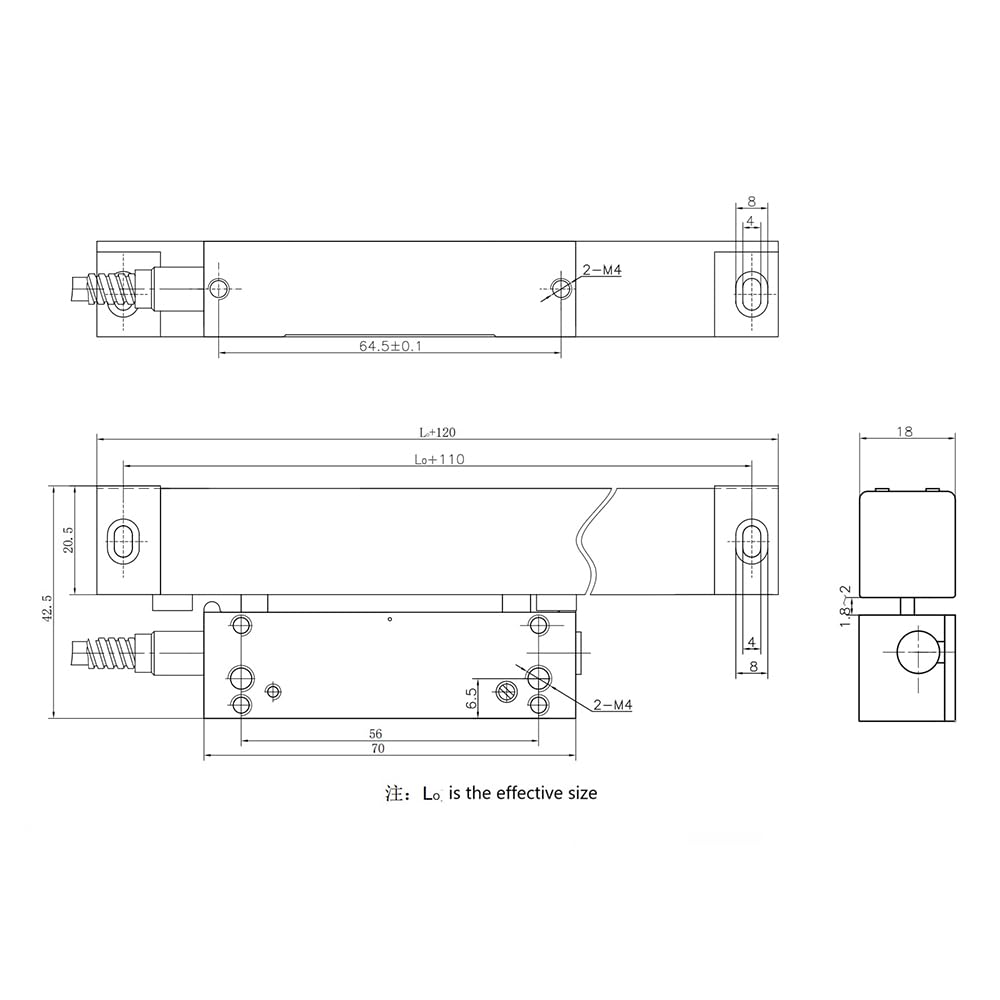

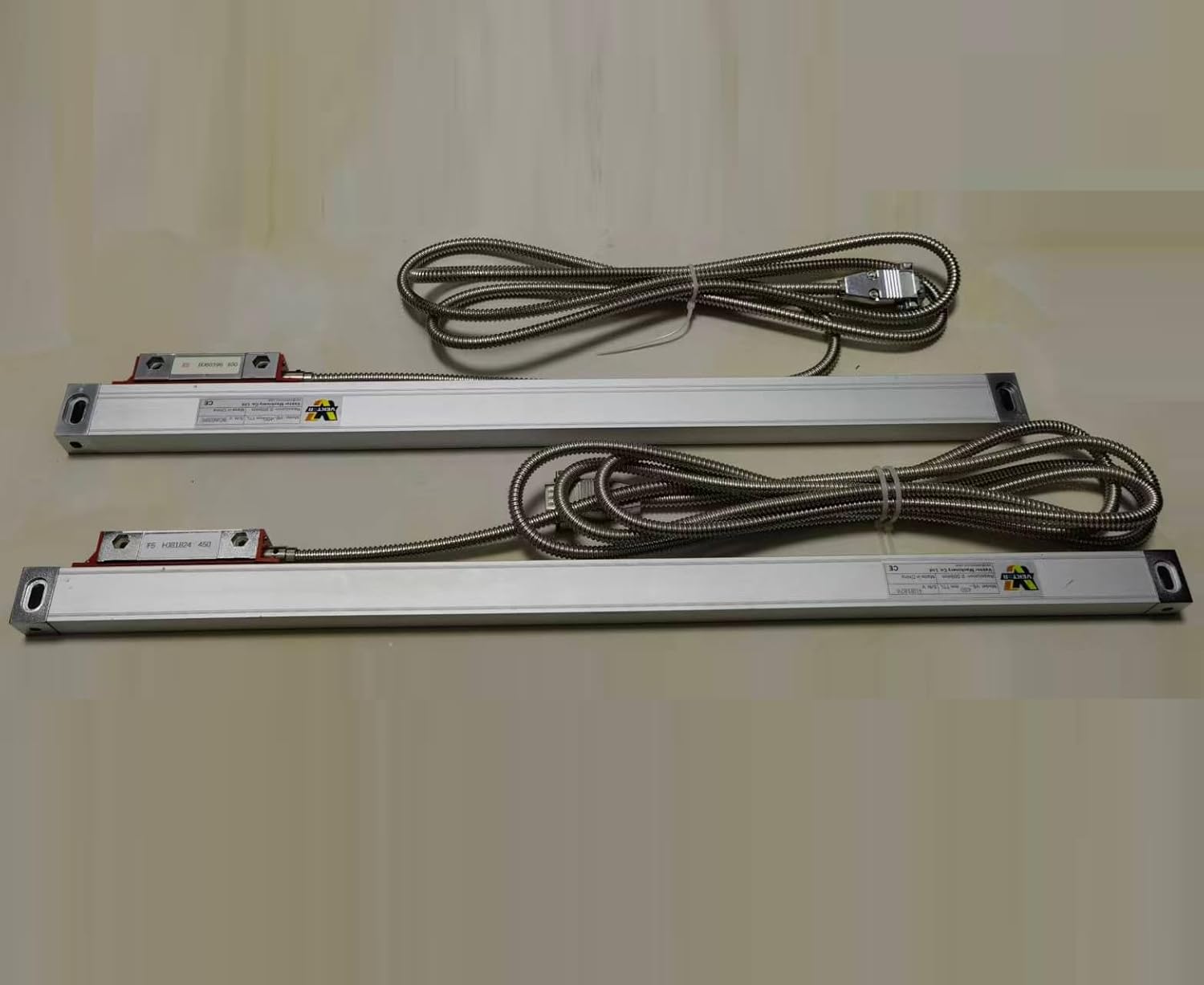

• Includes a LCD 2-axis DRO and 2pcs of 5um linear scales, the maximum stroke of the ruler for Y-axis (direction parallel to the bed) is 1000 (39.3inch), The X-axis uses an slim ruler （JCXFS） with a smaller cross-section, making it more suitable for tight spaces.
• TTL output, Default resolution 5um/0.0002” resolution.
• Scale length: 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, 600 mm, 650 mm, 700 mm, 750 mm, 800 mm, 850 mm, 900 mm and 950 mm or 1000mm.
• When ordering, be sure to leave a message to note the length of travel of the ruler purchased. One inch equals to 25.4 mm. You may choose ANY two scales in the lengths above.
• Our manufacture has fifty years professional experience in optical measurement instrument production. Various certifications of good manufacturing quality: ISO9001, JT25/JT26, JT20 and JX13, IP53- certified glass scales protection and CE certificate of safety standard.
• We have long scales in stock. We also have 1um high resolution scales in stock. Please contact the seller for any special requirements.
• When placing an order, if you can attach photos of the machine, especially pictures of the installation parts, we will provide you with professional installation advice and technical guidance. if you have any technical questions before placing your order.
